Turbo Portable Washer Owner's Manual

I. Name of washing cup parts

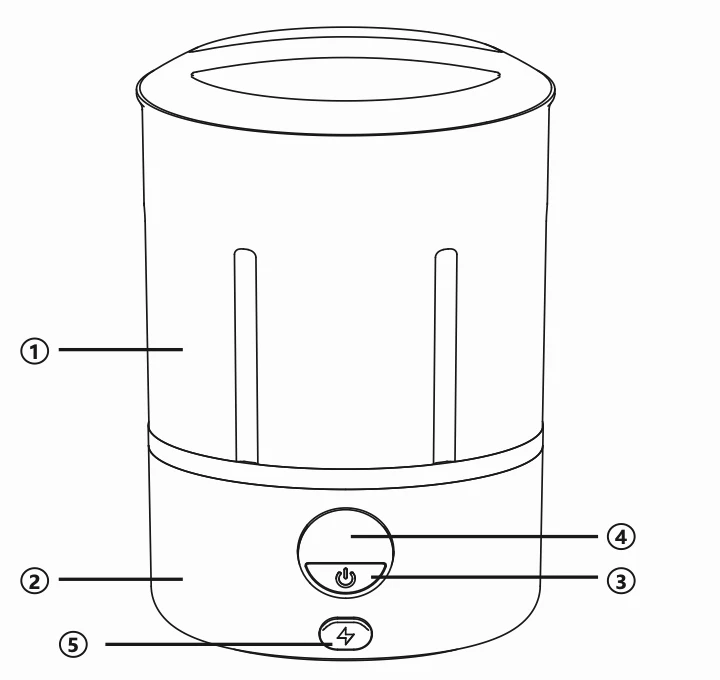

Turbo Portable Washer parts diagram

1. Cup body   2. Base   3. Switch   4. Liquid crystal display   5. Charging port

II. Product parameters

  • Name: mini laundry cup
  • Model: PC-XY901
  • Rated voltage: 3.7V
  • Battery capacity: 2000mAh
  • Charging method: Type-C

III. Uses

Used for washing small quantities of clothes (such as underwear, socks, baby clothes, handkerchiefs, ties, scarves, lightly stained local clothes, etc.) or as an auxiliary tool for washing.

IV. Method of use

  1. Put a small amount of clothes to be cleaned into the cup. (Don't overfill the cup.)
  2. Open the lid of the cup and add a proper amount of cold water or warm water to the cup (the water level generally does not exceed the maximum scale line, or clothes can be submerged).
  3. Add a small amount of neutral laundry detergent or fully dissolved washing powder.
  4. Cover the lid tightly.
  5. Press the switch button, once for 5 minutes, twice for 10 minutes, and once again for shutdown.
  6. Charging display: Use the equipped data cable to charge. When charging, the light will increase gradually, and the full light display will be fully bright.

V. Safety tips

  1. The mini washing machine works only with cold water or warm water: Do not pour boiling water into the cup to avoid damaging the cup or causing deformation.
  2. When using and storing, please place it out of the reach of children to avoid eating small parts by mistake or accidents.
  3. Do not immerse the motor part in water or directly flush the motor part with water.
  4. The mini washing machine cannot be used when charging.
  5. If you find that the wire is damaged, the product is abnormally hot or smells, please stop using it immediately and contact after-sales service.
  6. Capacity limitation: Do not add more than 2/3 of the cup. Overfilling can lead to poor washing effect, water overflow or damage to the product.
  7. No washing items:
    • Hard objects (such as coins, keys, clothes without zippers) may scratch the inner wall.
    • Clothes that are easy to fade, serious or easy to dye (it is recommended to wash them separately).
    • Articles containing flammable, explosive or corrosive substances.
  8. Avoid falling and bumping: The products are mostly made of plastic, so please handle them with care to avoid falling or strong bumping to prevent breakage.
  9. Cleaning agent use: use neutral laundry detergent or washing powder. Avoid using strong acid, alkali, bleach or corrosive cleaner to avoid damaging the cup.

VI. Cleaning and maintenance

  1. After each use: Immediately pour out the sewage and thoroughly wash the inside of the cup and the lid with clean water to remove the residual detergent and fiber. Open the lid of the cup and put the cup upside down in a dry and ventilated place to dry, so as to avoid the accumulation of water inside to breed bacteria or produce peculiar smell.
  2. Regular cleaning: A small amount of neutral detergent can be dipped in a soft cloth or sponge to wipe the inside and outside of the cup and the lid. For scale, it can be soaked in diluted white vinegar water for a period of time and then rinsed clean. Do not use hard objects such as steel balls to brush, so as not to scratch the cup.
  3. Store: Ensure that the product is completely dry, cover the cup (but don't fasten it and keep it ventilated) and store it in a cool and dry place. Avoid direct sunlight or high temperature environment.
